A To-Do List App is a task management application used to organize daily work, personal activities, shopping lists, projects  in one place.

Users can:

• Add tasks
• Update tasks
• Delete tasks
• Mark tasks as completed
• Filter tasks by category or status

The main goal of a To-Do App is to help users stay organized, improve productivity, and manage time easily.

MERN Stack To-Do App File Structure

A MERN Stack To-Do App is divided into three main parts: Frontend, Backend, and Database. The frontend is used to create the user interface, the backend handles APIs and server logic, and MongoDB stores application data. Some folders and files are created automatically during setup, while others are created manually for project development.

Technologies Used

Frontend

• React.js
• JSX
• CSS
• Axios
• React Router DOM

Backend

• Node.js
• Express.js

Database

• MongoDB
• Mongoose

Authentication

• JWT Token
• bcrypt password hashing

MERN Stack Execution Flow

In a MERN Stack application, the execution process starts with the MongoDB database, followed by the backend server, and finally the frontend application.

First, MongoDB runs to store user and task data. Then the backend starts using the server.js file, which connects Node.js and Express.js with MongoDB through Mongoose models like User.js and Todo.js.

After the backend server runs successfully, the frontend React application starts from main.jsx, which opens App.jsx and loads pages like Login, Register, and Dashboard.

The frontend sends API requests to the backend using Axios, the backend processes the requests, interacts with MongoDB, and sends responses back to the frontend to display updated data in the application.

Database Structure and Execution

The database of the To-Do List Application is managed using MongoDB and Mongoose. MongoDB is used to store user and task data, while Mongoose helps connect the Node.js backend with the MongoDB database using schemas and models. Files like User.js and Todo.js inside the models folder define how user details and task information should be stored in the database. The .env file stores the MongoDB connection URL securely for backend access.

Database Setup Commands

mongod

Add Database URL in .env

PORT=5000
MONGO_URI=mongodb://127.0.0.1:27017/todo_db
JWT_SECRET=mysecretkey

Database Explanation

• MongoDB → Stores application data
• Mongoose → Connects backend with MongoDB
• User.js → Stores user details
• Todo.js → Stores task details
• .env → Stores database connection URL securely

After connecting the database, the backend can store, update, retrieve, and delete task and user data successfully.

MongoDB is used as the database.

• User.js model stores:
  • Name
  • Email
  • Password
• Todo.js model stores:
  • Task title
  • Description
  • Category
  • Status
  • Due date

Mongoose connects Node.js backend with MongoDB database and manages data storage.

Backend Structure and Execution

The backend of the To-Do List Application is created using Node.js and Express.js to handle server-side logic and APIs. During setup, in-built files like node_modules, package.json, and package-lock.json are automatically created. Manual folders such as models, routes, and middleware are created to organize database models, API routes, and authentication logic. Files like User.js, Todo.js, authRoutes.js, todoRoutes.js, authMiddleware.js, server.js, and .env are used to manage users, tasks, authentication, server configuration, and MongoDB connection.

Backend Installation Commands

mkdir backend
cd backend
npm init -y
npm install express mongoose cors dotenv bcryptjs jsonwebtoken
npm install nodemon --save-dev
mkdir models routes middleware
touch server.js .env
npm run dev

Command Explanation

• mkdir backend → Creates backend folder
• cd backend → Moves into backend folder
• npm init -y → Creates Node.js project
• npm install express mongoose cors dotenv bcryptjs jsonwebtoken → Installs backend packages
• npm install nodemon --save-dev → Installs nodemon for auto restart
• mkdir models routes middleware → Creates backend folders
• touch server.js .env → Creates main backend files
• npm run dev → Runs backend server

After execution, the backend server connects with MongoDB and handles API requests successfully.

The backend is created using Node.js and Express.js.

In-Built Backend Files

These files are automatically created after npm setup:

• node_modules → Stores installed backend packages
• package.json → Backend package details
• package-lock.json → Package version details

Manual Backend Folders and Files

These are created manually for backend development:

• middleware → Used for authentication checking
• models → Used for MongoDB schemas
• routes → Used for API routes

Inside middleware folder:

• authMiddleware.js → Checks JWT token security

Inside models folder:

• User.js → Stores user data structure
• Todo.js → Stores task data structure

Inside routes folder:

• authRoutes.js → Handles login and register APIs
• todoRoutes.js → Handles task APIs

Other backend files:

• server.js → Main backend starting file
• .env → Stores MongoDB URL and secret keys

Backend Flow

server.js
↓
routes
↓
authMiddleware.js
↓
models
↓
MongoDB

Frontend Structure and Execution

The frontend of the To-Do List Application is created using React.js and Vite to build a fast and responsive user interface. During setup, in-built files and folders like node_modules, src, App.jsx, main.jsx, App.css, and index.css are automatically created. Additional folders such as assets, components, and pages are created manually to organize images, reusable components, and application pages like Login.jsx, Register.jsx, and Dashboard.jsx. The main.jsx file starts the React application, while App.jsx manages the overall application flow and routing.

Frontend Installation Commands

mkdir frontend
cd frontend
npm create vite@latest .
npm install
npm install axios react-router-dom
npm run dev

Command Explanation

• mkdir frontend → Creates frontend folder
• cd frontend → Moves into frontend folder
• npm create vite@latest . → Creates React Vite application
• npm install → Installs project packages
• npm install axios react-router-dom → Installs API and routing packages
• npm run dev → Runs React frontend application

After execution, the frontend application runs successfully in the browser using the local development server.

The frontend is created using React.js and Vite.

In-Built Frontend Folders and Files

These files are automatically created during React setup:

• node_modules → Stores installed packages
• public → Stores static files
• src → Main React source folder
• App.jsx → Main application file
• main.jsx → Starting point of React app
• App.css → Application styling
• index.css → Global styling
• package.json → Project package details
• package-lock.json → Package version details
• .gitignore → Ignores unnecessary files
• eslint.config.js → Code formatting rules

Manual Frontend Folders and Files

These are created manually for the To-Do App:

• assets → Used for images and icons
• components → Used for reusable UI components
• pages → Stores application pages

Inside pages folder:

• Login.jsx → User login page
• Register.jsx → User registration page
• Dashboard.jsx → Main task management page

Frontend Flow

main.jsx
↓
App.jsx
↓
Login.jsx / Register.jsx / Dashboard.jsx

Simple MERN Stack Flow

Frontend (React.js)
↓
API Request (Axios)
↓
Backend Server (Express.js)
↓
Routes
↓
Mongoose Models
↓
MongoDB Database
↓
Response Back to Frontend
↓
UI Updates

The frontend handles user interface and pages, the backend manages APIs and application logic, and MongoDB stores all user and task data. Built-in files are automatically created during setup, while manual files are created for project functionality and features.

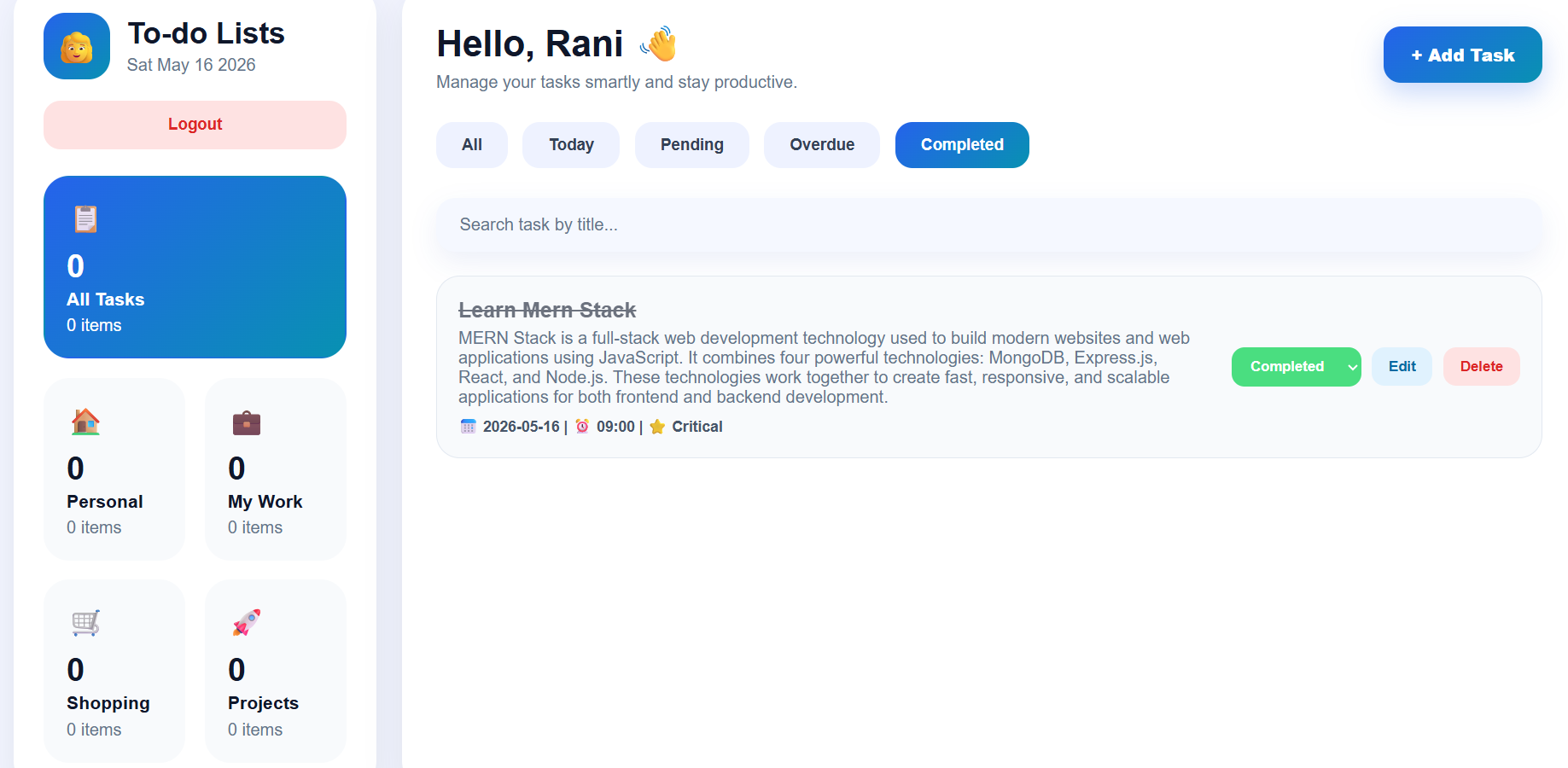

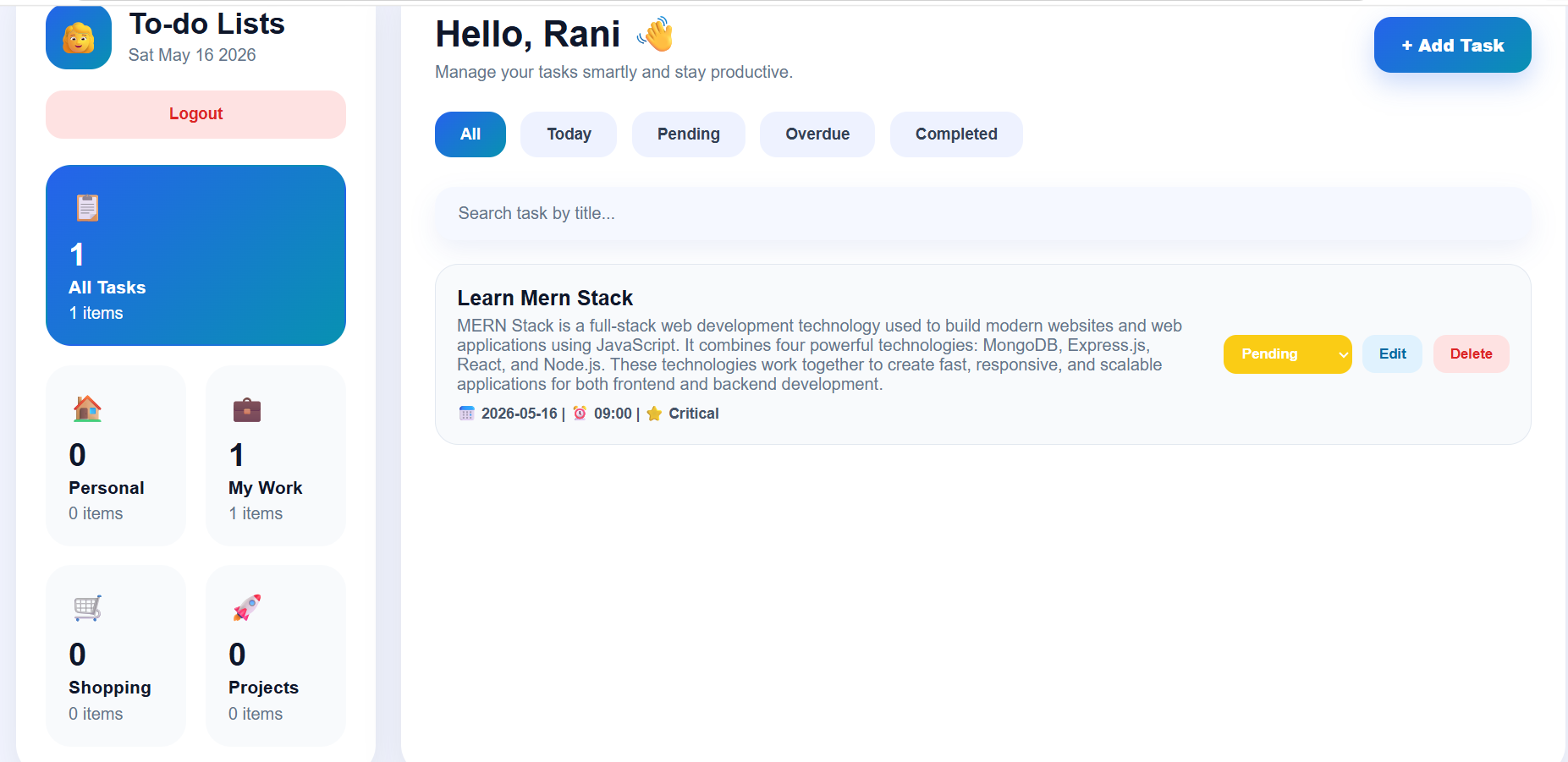

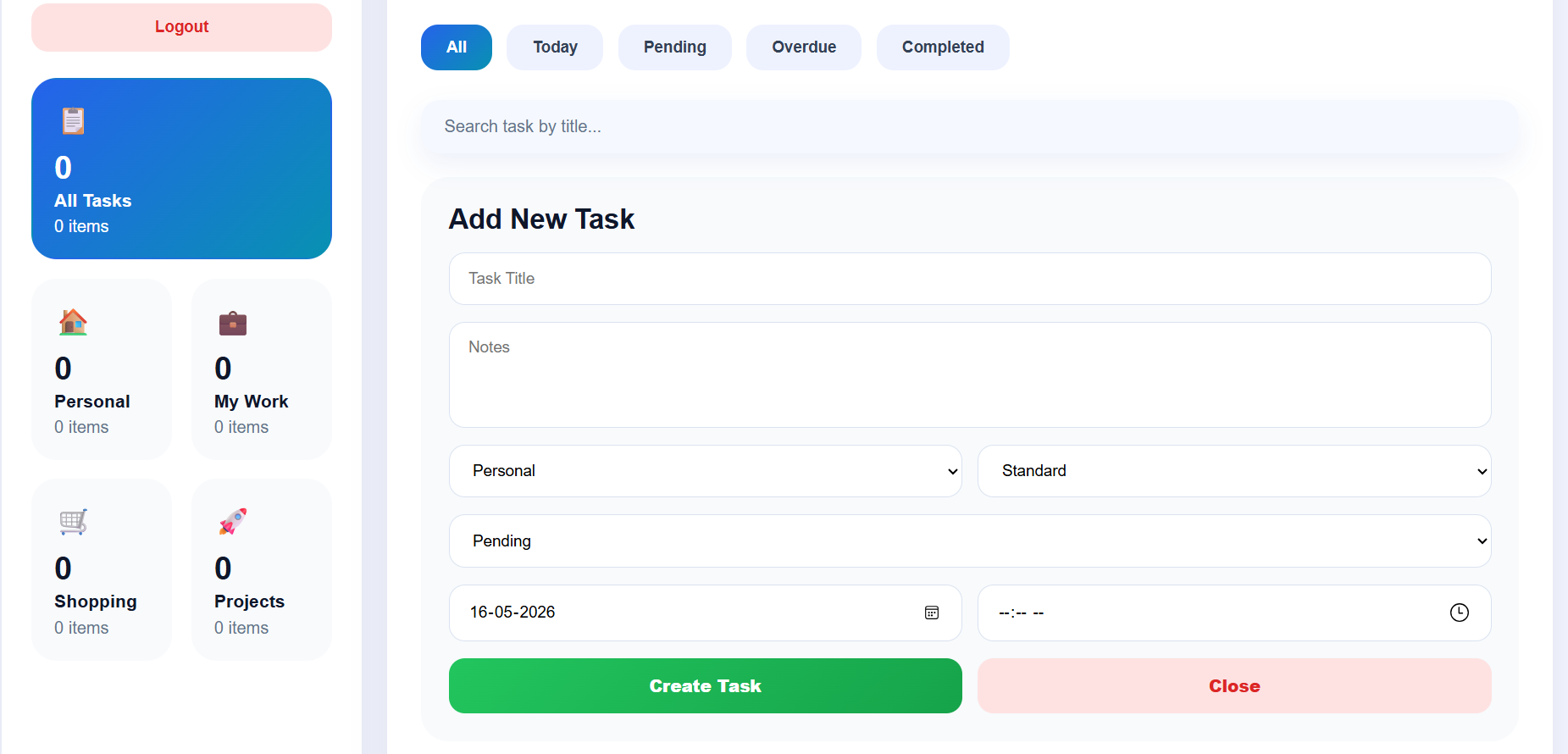

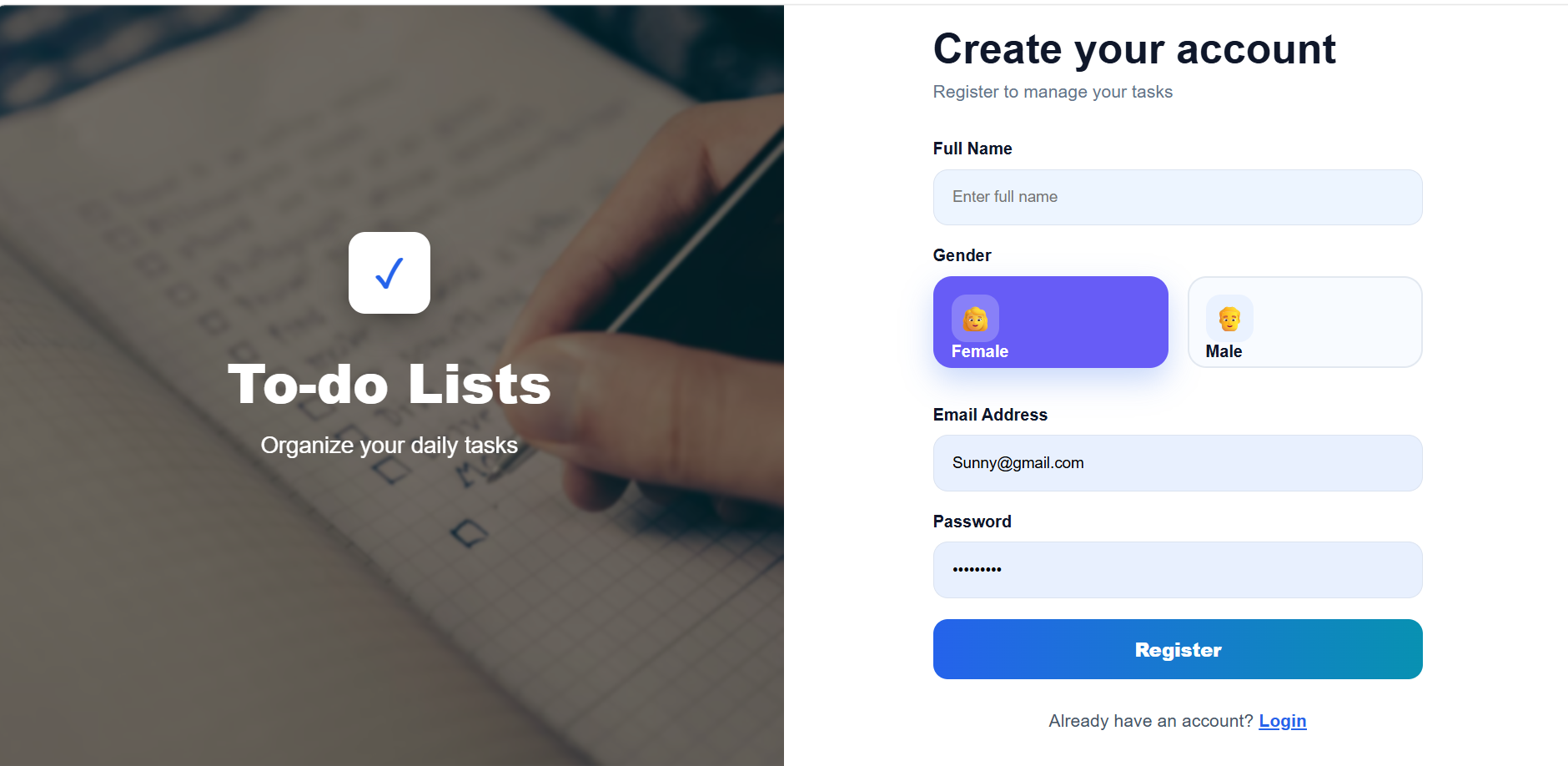

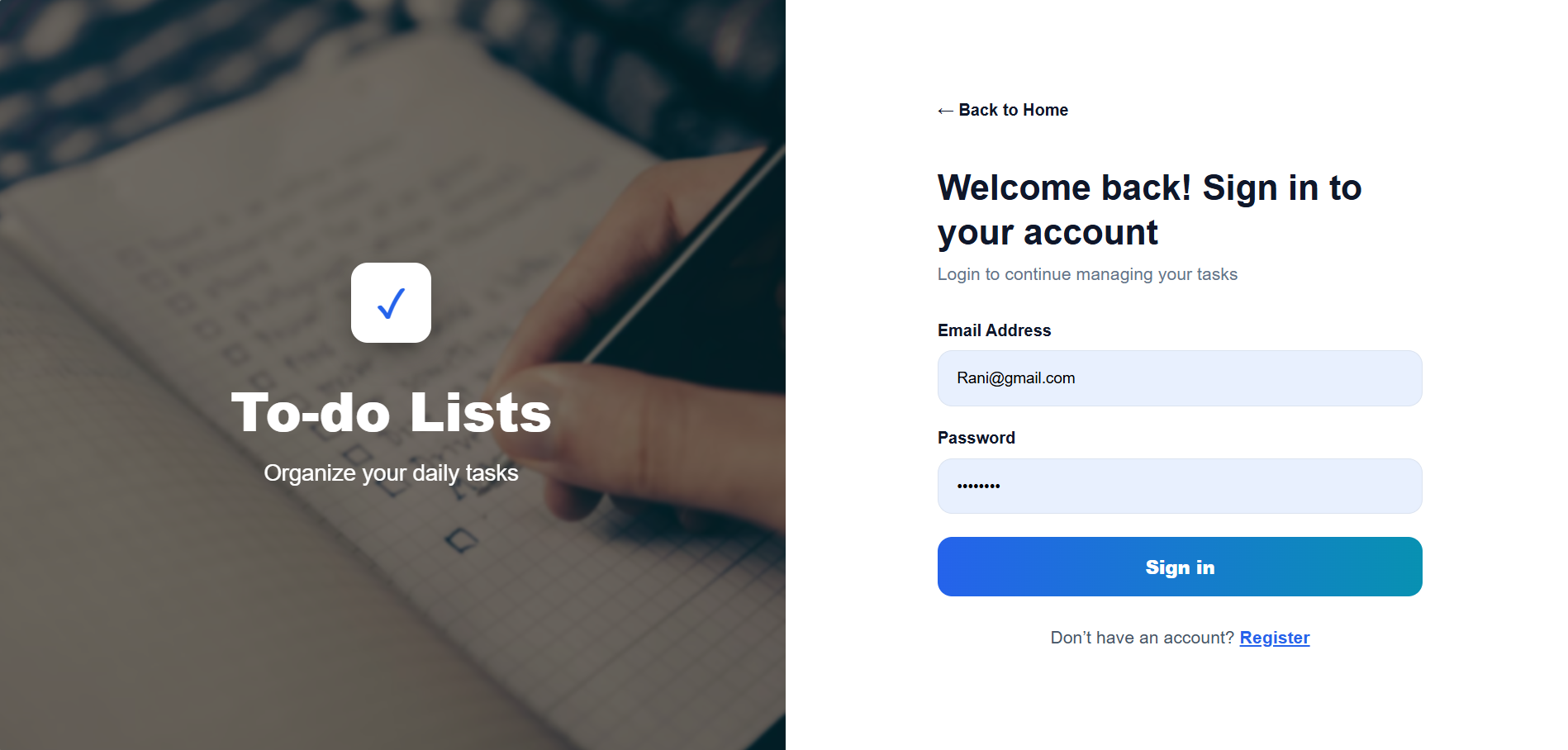

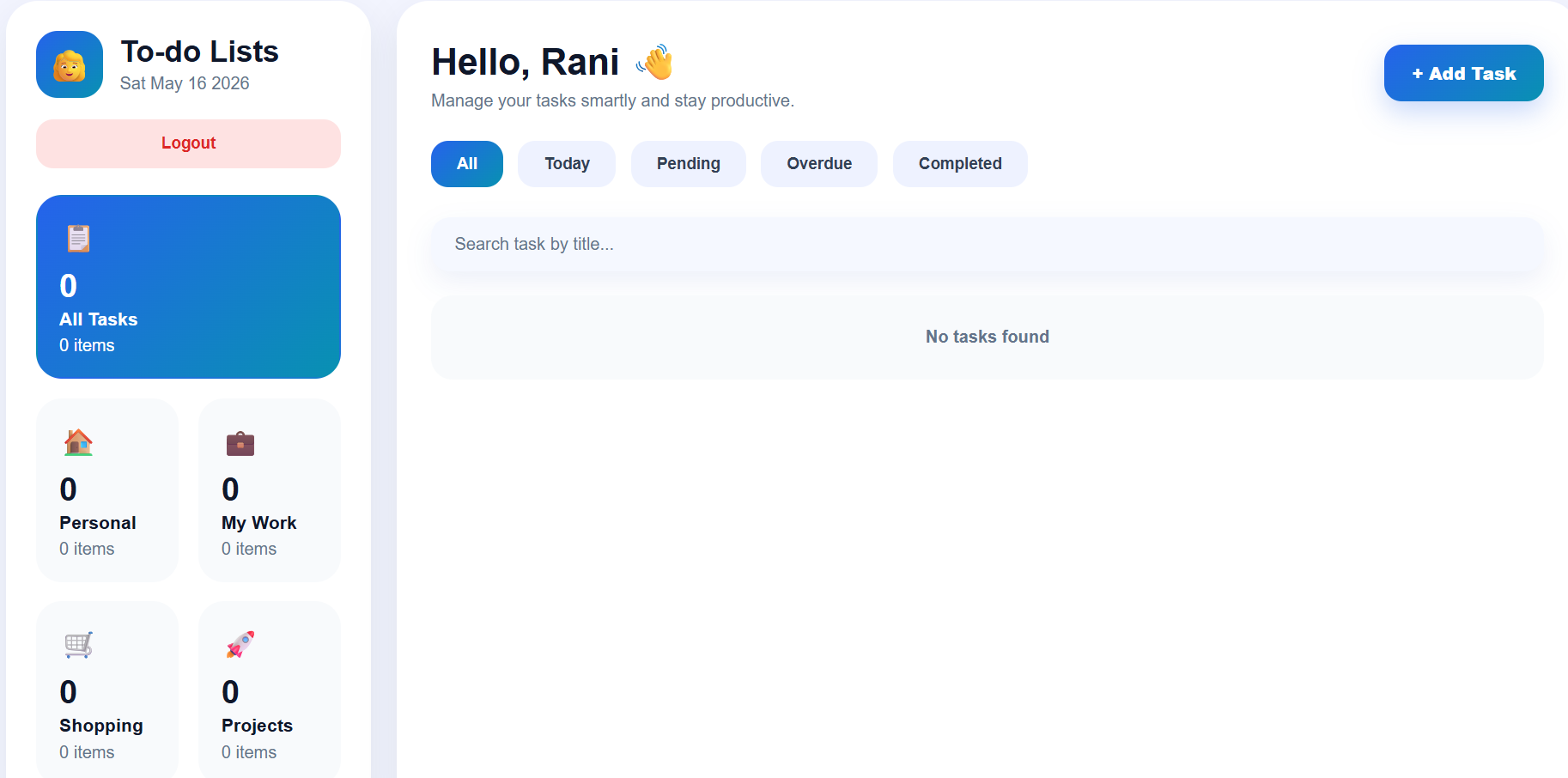

Output Screens of To-Do List Application

Correct File Flow for To-do List Project

Frontend Files

main.jsx
Starting point of React app. It loads App.jsx.

App.jsx
Controls routes like Login, Register, and Dashboard.

Login.jsx
Used for user login. Sends login data to backend authRoutes.js.

Register.jsx
Used for user registration. Sends user data to backend authRoutes.js.

Dashboard.jsx
Main page of the To-Do App. It handles adding tasks, viewing tasks, editing tasks, deleting tasks, searching tasks, categories, pending tasks, completed tasks, and overdue tasks.

App.css
Used for styling the application.

Backend Files

server.js
Main backend file. It starts the server, connects MongoDB, and uses routes.

User.js
Stores user data like name, email, and password.

Todo.js
Stores task data like title, description, category, status, and due date.

authRoutes.js
Handles register and login API routes.

todoRoutes.js
Handles add, get, update, delete, and complete task routes.

authMiddleware.js
Checks JWT token before allowing users to access tasks.

.env
Stores MongoDB URL, port number, and JWT secret.

Main Features of To-Do App

1. User Authentication

Users can create account and login securely.

Features

• Register account
• Login account
• Logout
• JWT token security
• Password encryption using bcrypt

Files Used

Register.jsx
Login.jsx
authRoutes.js
User.js
authMiddleware.js

2. Add Task Feature

Users can create new tasks.

Example

• Title
• Description
• Due Date
• Category
• Priority

Files Used
todoRoutes.js
Todo.js

3. View Tasks Feature

Displays all created tasks.

Features

Tasks
Search
Categories
Task management
Pending and completed tasks

Files Used

Dashboard.jsx

4. Edit Task Feature

Users can update task details.

Example

Change:

• Title
• Due date
• Status
• Priority

Files Used

Dashboard.jsx

5. Delete Task Feature

Users can remove unwanted tasks.

Files Used
todoRoutes.js

6. Complete Task Feature

Users can mark tasks as completed.

Features

• Completed tasks section
• Status update
• Task movement

Files Used
Dashboard.jsx
Todo.js

7. Search Task Feature

Users can search tasks quickly.

Example

Search by:

• Task title
• Category

Files Used

Dashboard.jsx

8. Task Categories Feature

Tasks can be grouped into categories.

Example Categories

• Personal
• Shopping
• My Work
• Projects

Files Used

Dashboard.jsx

9. Pending Tasks Feature

Shows tasks not completed yet.

Files Used

Dashboard.jsx
Todo.js

10. Overdue Tasks Feature

Shows tasks whose due date is crossed.

Files Used

Dashboard.jsx

Simple File Explanation

FRONTEND FILES

main.jsx

Purpose

Starting point of React app.

What it does

Loads full application.

Flow

main.jsx → opens → App.jsx

App.jsx

Purpose

Controls all pages and routes.

What it does

Decides which page to show.

Example

• Login page
• Register page
• Dashboard page

Login.jsx

Purpose

User login page.

What it does

Checks email and password.

Connected Files
authRoutes.js

Register.jsx

Purpose

New user registration page.

What it does

Creates new account.

Dashboard.jsx

Purpose

Main working page of app.

What it does

Shows:

Tasks
Search
Categories
Task management
Pending and completed tasks

BACKEND FILES

---

server.js

Purpose

Main backend starting file.

What it does

• Starts server
• Connects MongoDB
• Uses routes

User.js

Purpose

Stores user database structure.

Stores

• Name
• Email
• Password

Todo.js

Purpose

Stores task database structure.

Stores

• Title
• Description
• Status
• Category
• Due date

authRoutes.js

Purpose

Handles login/register routes.

Example

/login
/register

todoRoutes.js

Purpose

Handles task routes.

Example

• Add task
• Delete task
• Update task
• Complete task

authMiddleware.js

Purpose

Protects private routes.

What it does

Checks JWT token before accessing tasks.

DATA BASE

Correct database flow:

Todo.js and User.js are Mongoose models.
They define how data should be stored in MongoDB.

Simple Complete Flow

User opens app
↓
main.jsx starts React
↓
App.jsx opens Login/Register/Dashboard
↓
User login/register
↓
authRoutes.js handles authentication
↓
User.js stores user data in MongoDB
↓
After login, user enters Dashboard
↓
Dashboard sends task request to todoRoutes.js
↓
authMiddleware.js checks JWT token
↓
Todo.js stores task data in MongoDB
↓
Response comes back
↓
Dashboard updates tasks

Summary

The To-Do List App is a MERN Stack project used to manage daily tasks efficiently.

React.js is used for the frontend UI, Node.js and Express.js handle the backend APIs, and MongoDB stores task data. JWT tokens and bcrypt provide secure authentication.

The application follows full-stack architecture to perform CRUD operations smoothly between frontend, backend, and database.
